M-Trace PC works with 12-channel ECG M-Trace PC registers created by M4Medical.

M-Trace PC is an application designed for smartphones and tablets with Android system that works with 12-channel ECG M-Trace PC registers created by M4Medical.

Main features:

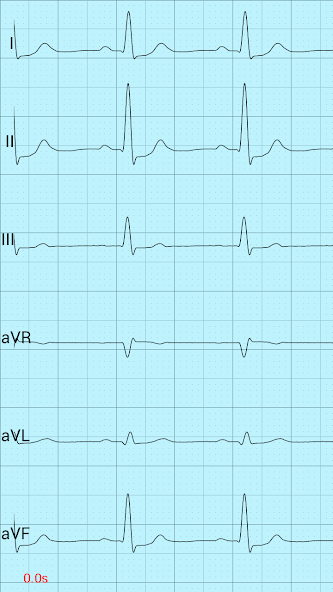

• Real-time monitoring of an ECG examination from M-Trace PC register device via Bluetooth interface

• Store series of examinations for future use

• Send saved examinations via e-mail in a SCP, PDF or JPG format

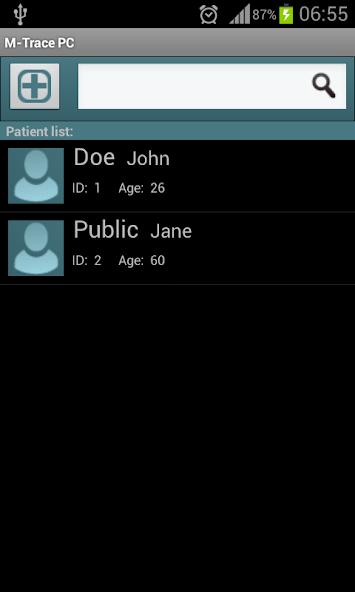

• Manage patients database

• Import/Export database to/from Windows version of the application

ECG device specification:

• Digital filtration: 25,35,50,60 Hz

• Detection of stimulator impulses

• Automatic regulation of isoelectric line

• Signalization of wrong connection with particular electrodes

• CMMR: >100dB

• Sampling frequency: 1000Hz

• A/C Converter: 24 bit

• Input impedance: >10 MΩ

• Range of steering: 30mVpp

• Passing band: 0,05-150 Hz

• Interface: BLUETOOTH

• Power : 3V DC (2 x AA)

• Fulfilled standards: EN 60601-1, EN 60601-1-2, EN 60601-2-25, EN 60601-2-51

• Dimensions: 95 x 64 x 28 mm

• Weight: <100g

Find out more at http://www.m4medical.com

What's New in the Latest Version 3.18

Last updated on Oct 26, 2024 USB ECG interface release:
- now you can switch between interfaces Bluetooth and USB, your choice will be remembered by app,
it is a fallback for some Samsung devices which has broken Serial USB connectivity after update to Android 14. like Samsung Galaxy Tab A8.
- Enabled Support for USB connectivity via Intent API. for external application calls,
Fixes:
- configuration of USB vs Bluetooth.
